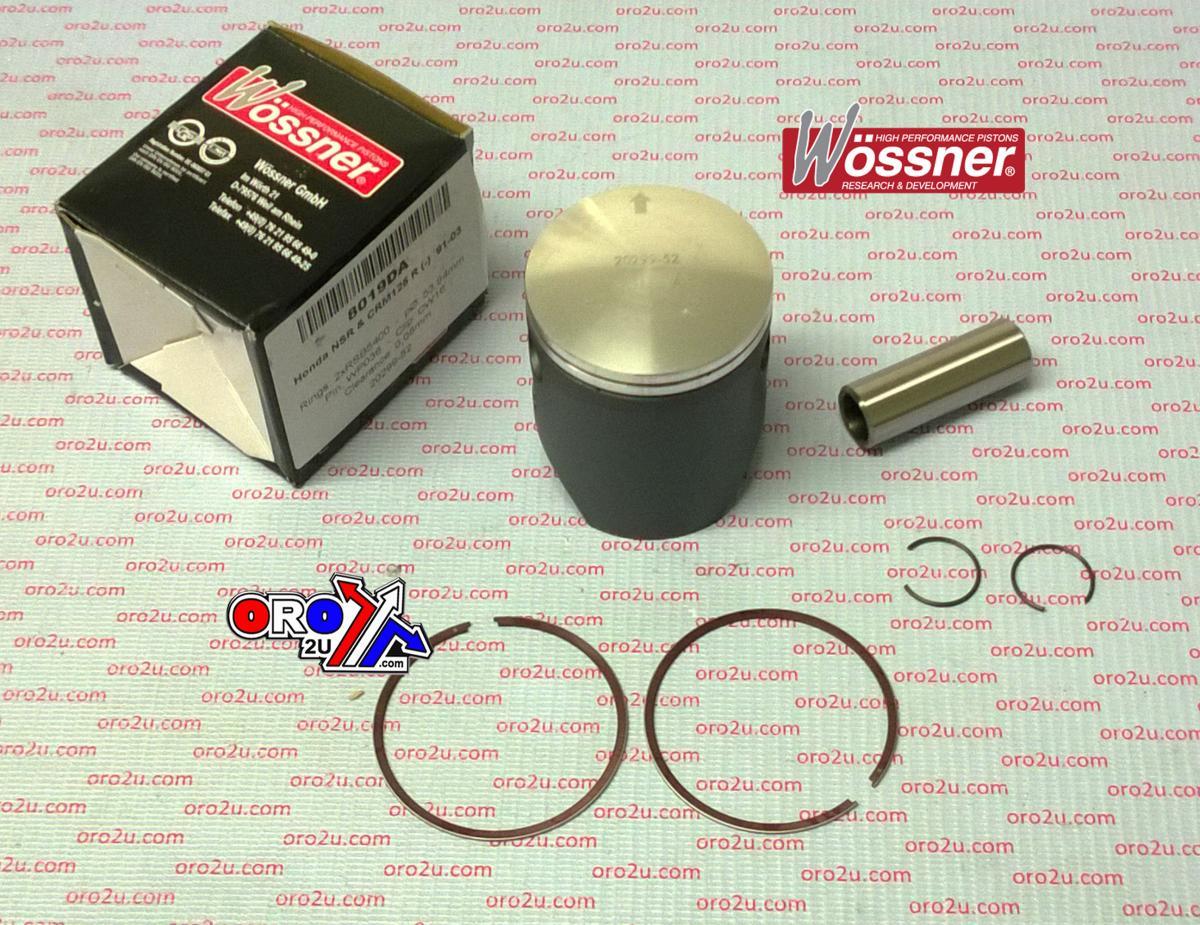

WOSSNER PISTON KIT NSR125 B 54.00mm, WOSSNER 8019DB HONDA ROAD

Piston Kit 54.00mm Bore 53.95 Wossner 8019DB (+0.01MM) HONDA
CRM R 125  '1986-' 2006,
NSR R 125  built 1988-2003 Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. 56-W906+00.B.WO (Wossner 8019DB)
RINGS. (2x)RSB5400
CLIPS. CW16
PIN. WP036 Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)
