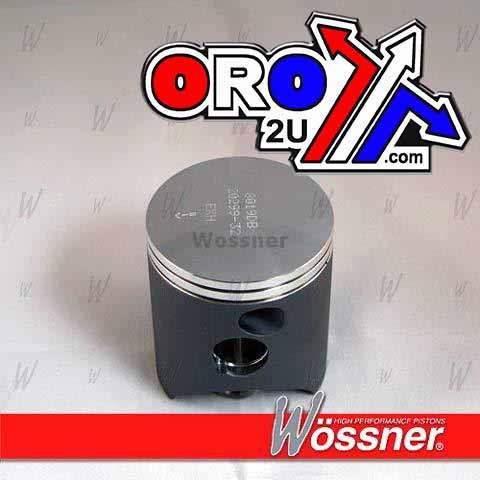

WOSSNER PISTON KIT NSR125 55.00mm, WOSSNER 8019D100 HONDA ROAD

Piston kit 55.00mm Bore 54.94 Wossner 8019D100 (+1.00) HONDA
CRM R 125  '1986-' 2006,

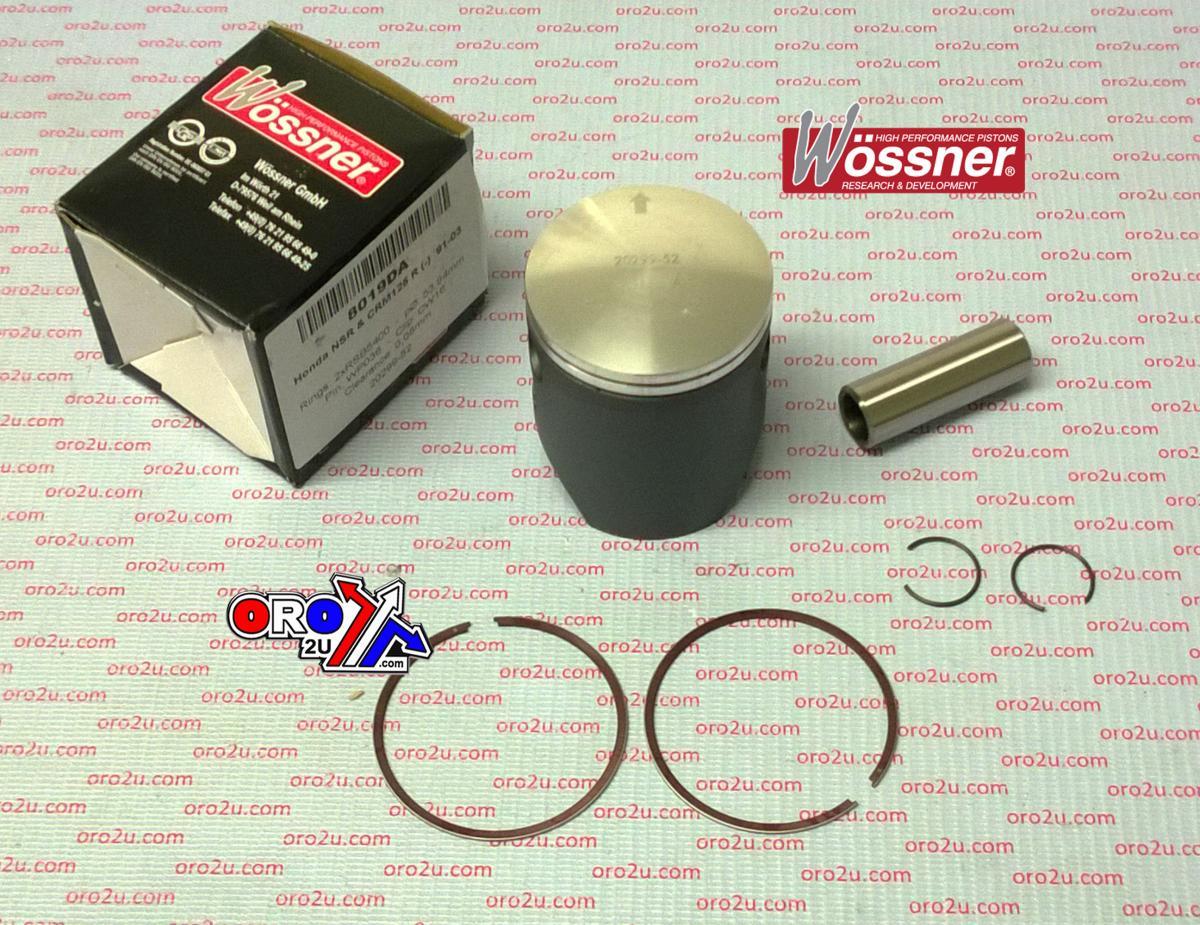

NSR R 125  built 1988-2003 Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. High quality Piston kit. Consist of pistons, rings, bolts and circlips. 56-W906+100.WO (Wossner 8019D100)
RINGS. (2x)RSB5500
CLIPS. CW16
PIN. WP036 Display (cm3) 124
Hub stroke (mm) 54.50
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) -
Compression height (mm) 30.00
Theorectical weight (G)
