WOSSNER PISTON KIT 99-12 125 MITO 56, CAGIVA 8018DA WOSSNER

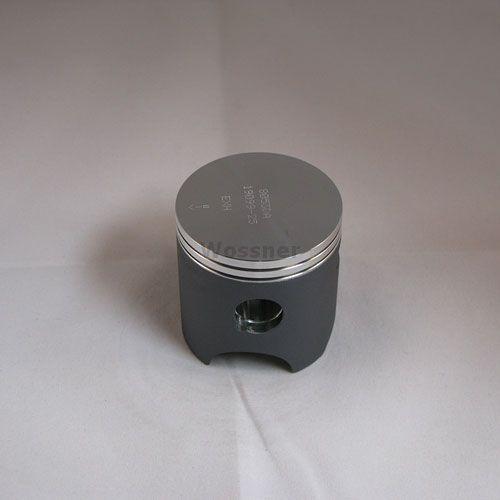

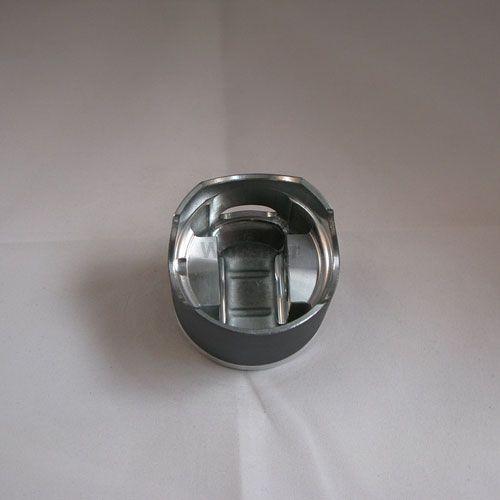

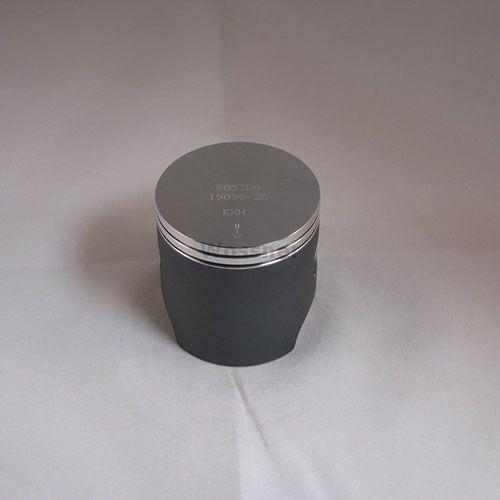

Piston kit 56mm BORE 55.95 Wossner 8018DA (STD) CAGIVA
125 Mito / Roptor / Supercity / Planet / W8 / Head 200A,C,D,E,G 2000-2012, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W941.A (oro2u.com) CAGIVA 125 Mito / Roptor / Supercity / Planet / W8 2000-2012

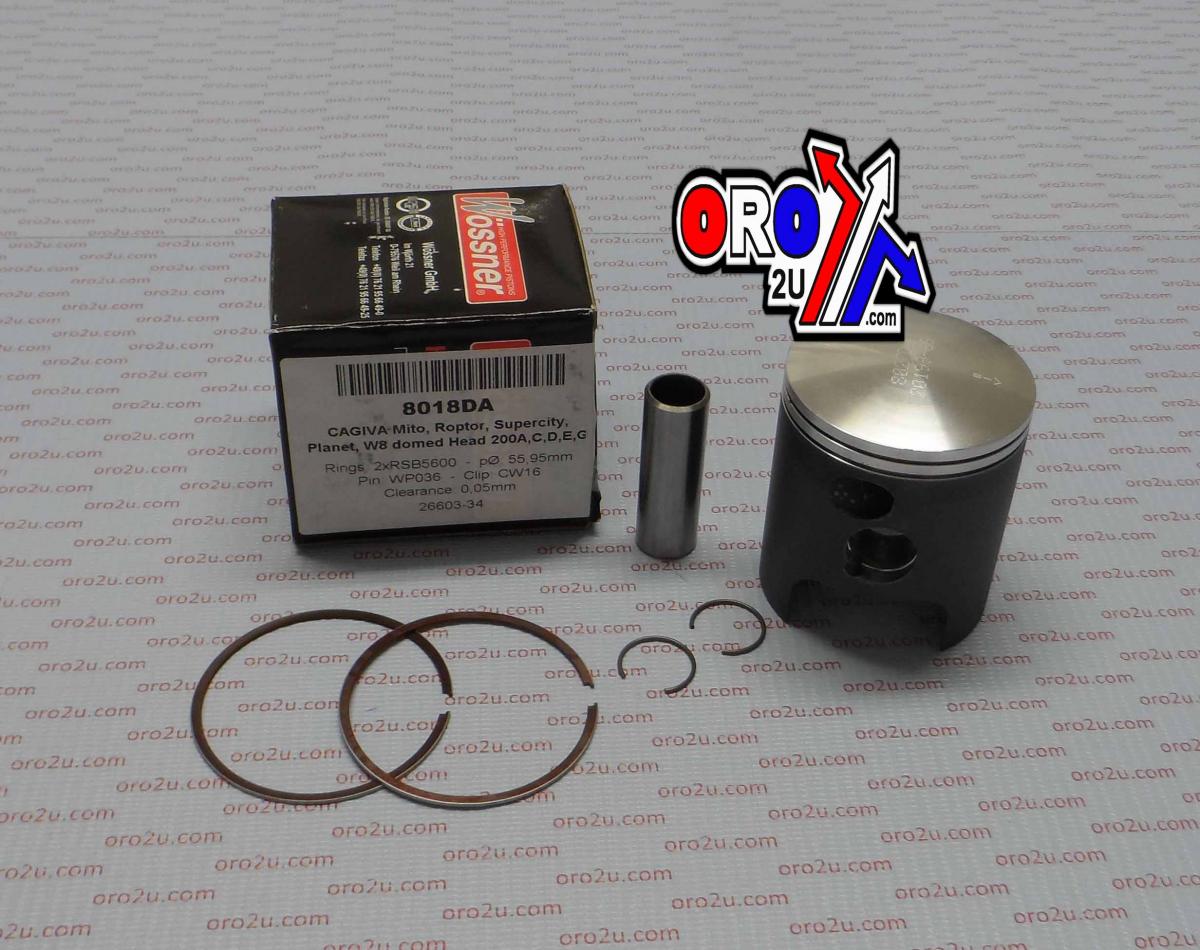

Wossner Piston Kit 56 mm Bore (PN# 8018DA)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N RSB5600 Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Domed
Compression height (mm) 25.00
Theorectical weight (G)
