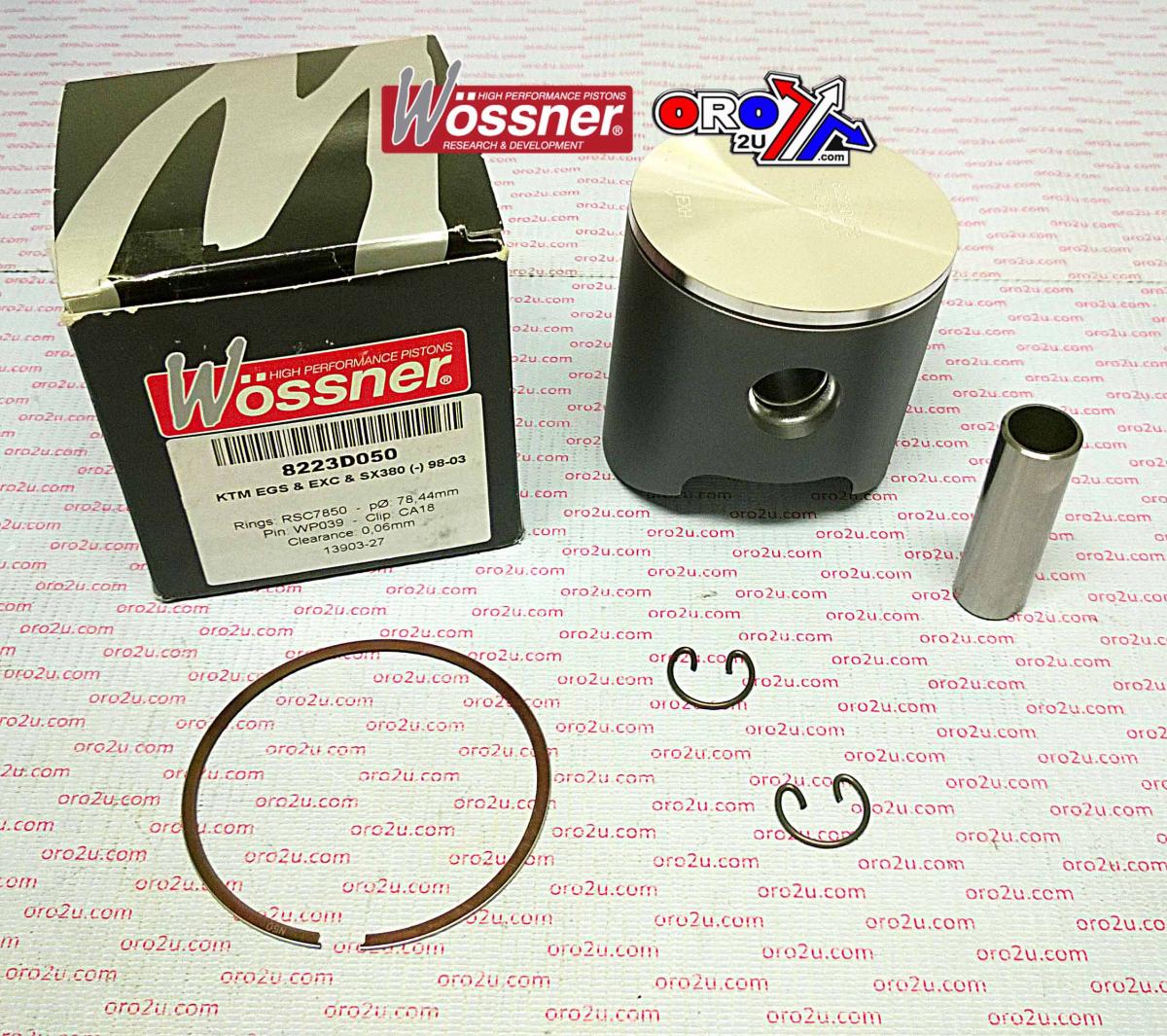

WOSSNER PISTON KIT 98-02 KTM380 78.00, WOSSNER 8223DB FORGED

Piston kit 78.01mm Bore 77.95 Wossner 8223DB (+0.01)
KTM
EGS 1998-2002,
EXC 1998-2002,
SX360 1998-2002,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W748+00B.WO (oro2u.com)
Wossner Piston KTM EGS380 78.01 mm Bore (PN# 8223DB)
KTM380 EGS/ECX/SX 98-02
Lock P/N CA18
Pin P/N WP039
Ring Set P/N RSC7800

Display (cm3) 368
Hub stroke (mm) 77.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 27.00
Theorectical weight (G)
