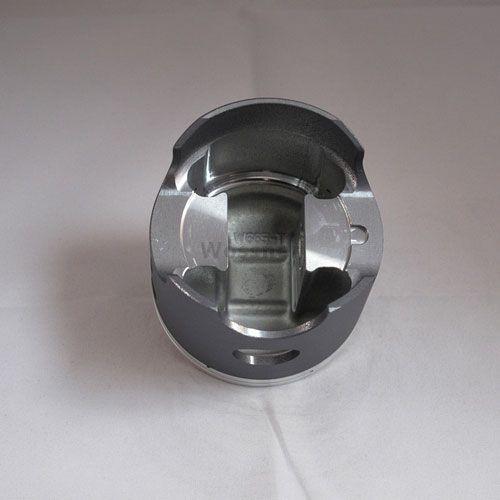

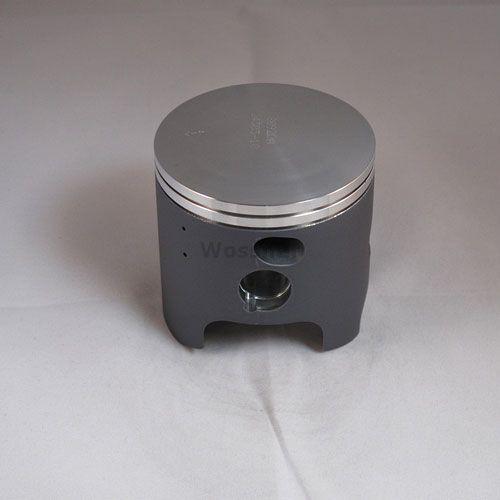

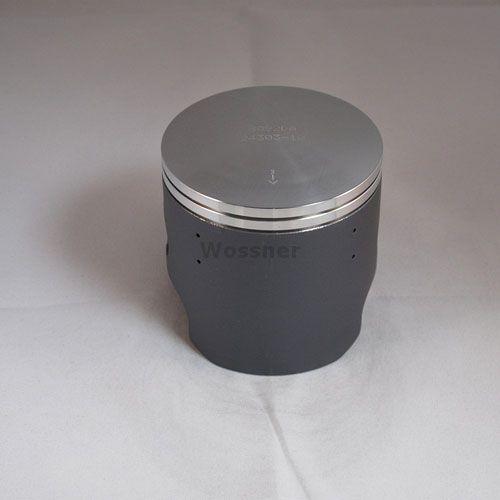

Piston kit 69.02mm Bore 68.95 Wossner 8092DC (+0.02)
KAWASAKI
KDX220R 1998 - 2005,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W750.C.WO

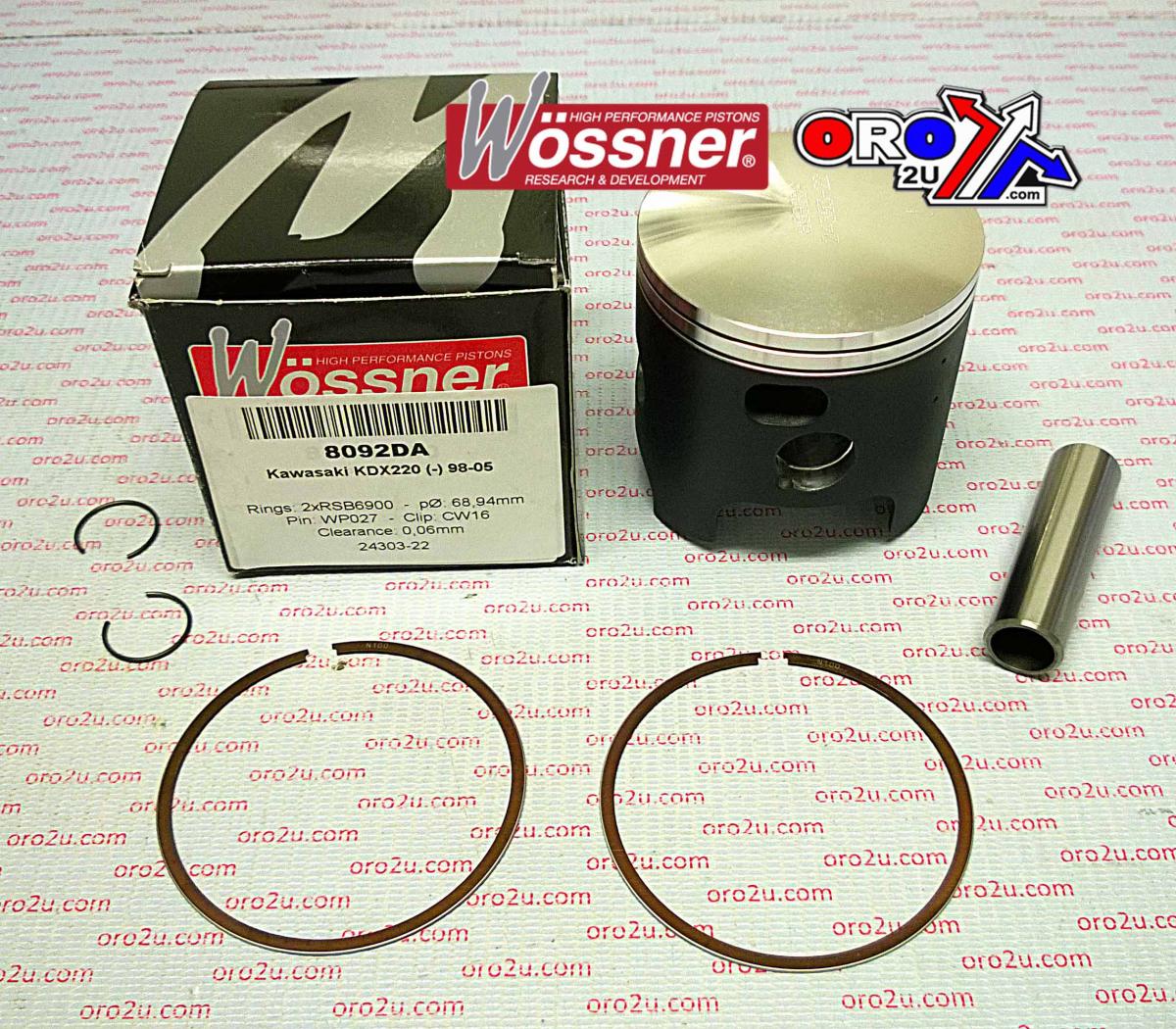

Wossner Piston Kawasaki KDX220 6902 mm Bore (PN# 8092DC)
Lock P/N CW16
Pin P/N WP027
Ring Set P/N RSB6900 X 2
Rod P/N P2033 Display (cm3) 216
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G) Select your car to see if this product fits:
- 1998 Kawasaki KDX 220 - 1999 Kawasaki KDX 220 - 2000 Kawasaki KDX 220 - 2001 Kawasaki KDX 220 - 2002 Kawasaki KDX 220 - 2003 Kawasaki KDX 220 - 2004 Kawasaki KDX 220 - 2005 Kawasaki KDX 220
