This Wossner piston kit with a 69.01mm bore (+0.01mm oversize, actual size 68.95mm) is built for Kawasaki KDX220R models from 1998 to 2005. Precision-forged in Germany, it ensures exceptional strength, consistent thermal performance, and long-lasting reliability in two-stroke off-road engines.

Features

• Forged piston for superior strength and durability

• Engineered for optimal heat dissipation from combustion chamber to cylinder walls

• Elliptical design delivers even bearing surface to prevent localised pressure and piston collapse

• German-manufactured for precision fit and high-quality standards

Specifications

• Bore size: 69.01 mm

• Actual piston size: 68.95 mm

• Display (cm³): 216

• Stroke (mm): 58.00

• Clearance (mm): 0.06

• Compression ratio: 2-stroke (Wossner and OEM)

• Compression height (mm): 32.00

Vehicle Fitments

• 1998 Kawasaki KDX220

• 1999 Kawasaki KDX220

• 2000 Kawasaki KDX220

• 2001 Kawasaki KDX220

• 2002 Kawasaki KDX220

• 2003 Kawasaki KDX220

• 2004 Kawasaki KDX220

• 2005 Kawasaki KDX220

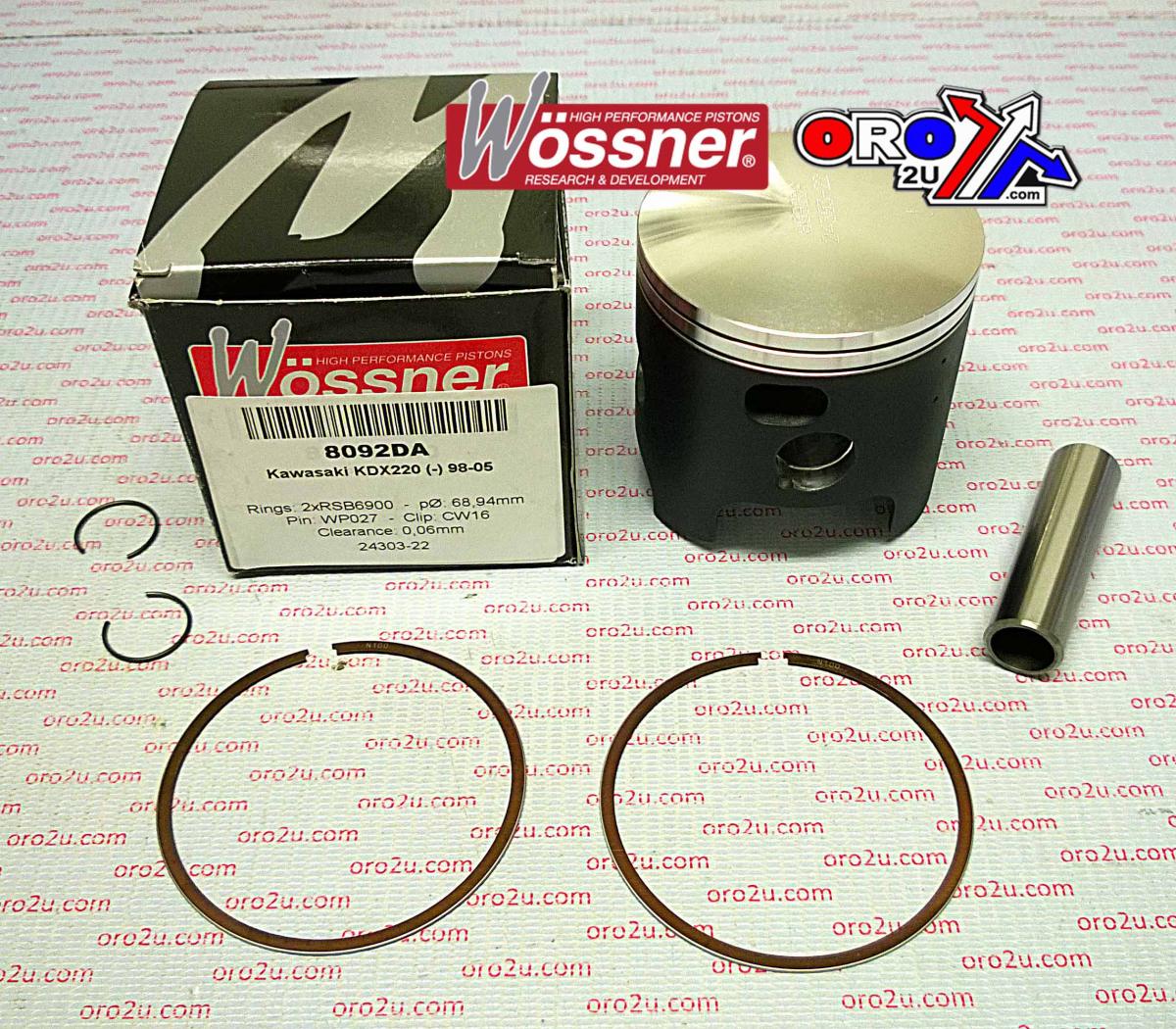

Included Components

• Piston: Wossner PN# 8092DB

• Lock: PN# CW16

• Pin: PN# WP027

• Ring Set: PN# RSB6900 x 2

• Rod: PN# P2033
