WOSSNER PISTON KIT/4 SUZ GSXR1000 TURB, WOSSNER K8747D160-4 75.00mm

Piston kit 75mm Bore 74.96 Wossner K8747D160-4 (+1.60mm)
SUZUKI
GSXR1000 TURBO 2005-2008, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W9871.160.WO (oro2u.com)
Clip part no - CW15
Piston pin- WP011
Ring set -RIK75.00L Display (cm3) 998 / 1042 / 1070
Hub stroke (mm) 59.00
Clearance (mm) 0.04
Wossner compression Ratio: 10.00:1
OEM Compression ratio: 12.50:1
Dome volume (cm3)   -12.50
Compression height (mm) 22.50
Theorectical weight (G) Part No. 56-W9871.160.WO (oro2u.com)
SUZUKI GSXR1000 TURBO 2005-2008,
WOSSNER FORGED PISTON K8747D160-4 Bore 75.00 (mm)

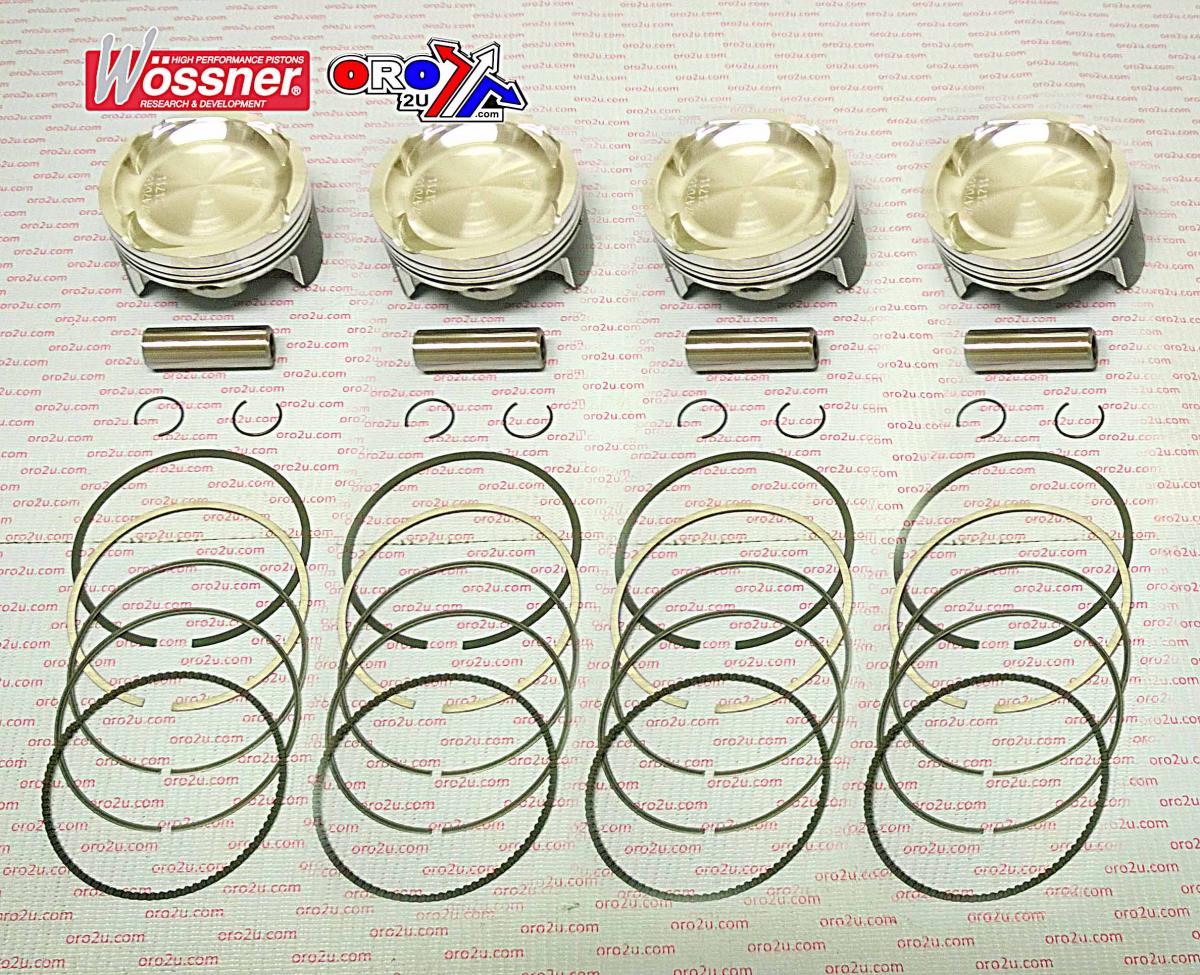

W?ssner are regarded by Europe?s leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses heat inside the chamber which will help prevent ?hot spots? on piston crowns. Price includes all piston rings and gudgeon pins.
