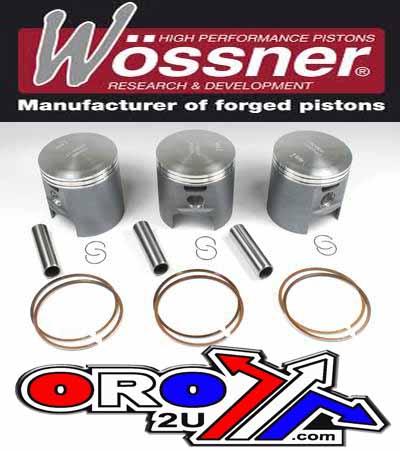

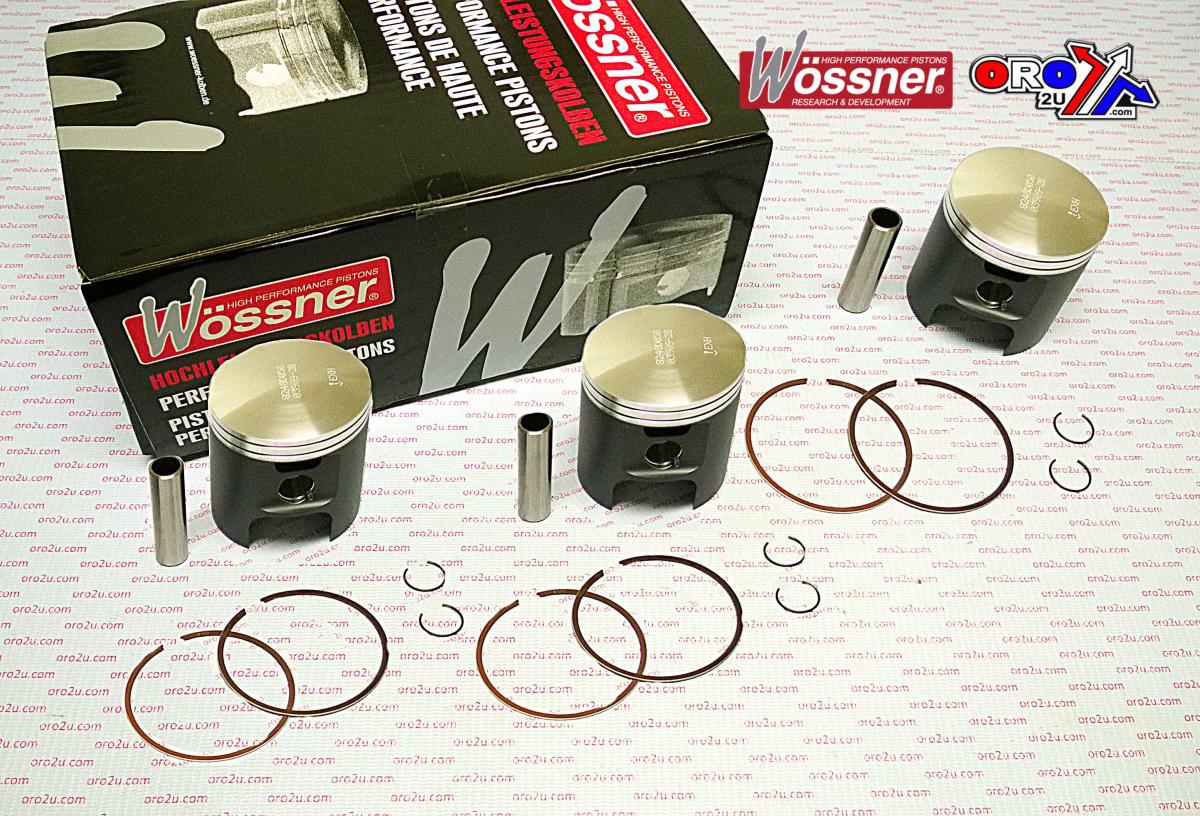

WOSSNER PISTON KIT/3 750 TRIPLE 71.50, WOSSNER K8248D050-3 1972-75

Piston kit 71.50mm BORE 71.43 Wossner K8248D050-3 (+0.5mm)
Kawasaki
750 Mach iv 1972 - 1975,
H2 750 Triple Cylinder 1972-1975 2 Stroke Classic, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W9868.050.WO (oro2u.com)
Clip part no - CW16
Piston pin- WP027
Ring set - RSB7150 x 2 Display (cm3) 747
Hub stroke (mm) 63.00
Clearance (mm) 0.07
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 32.00
Theorectical weight (G)
