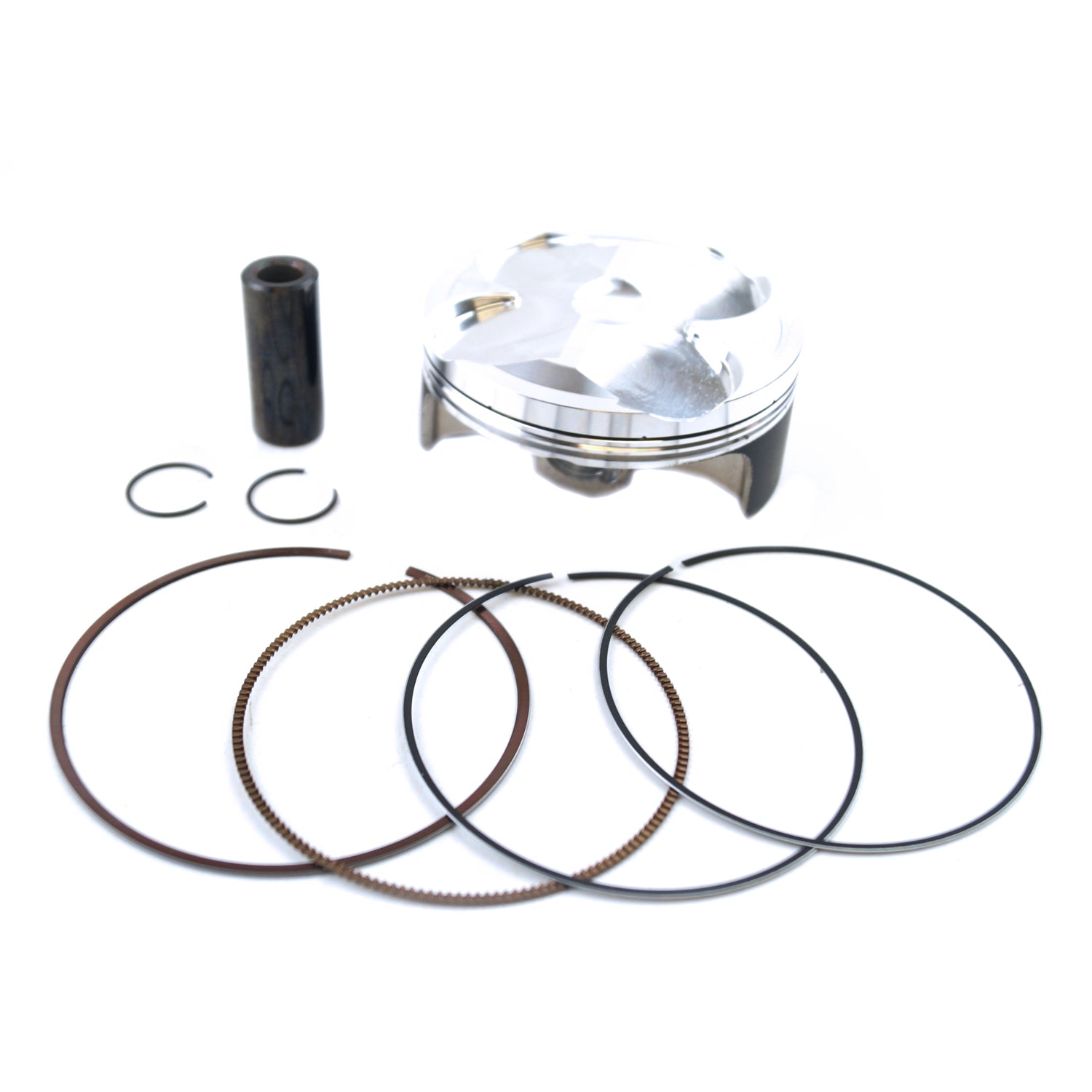

PISTON KIT 77.96mm Bore 78.00 WOSSNER 4076DB (STD)

Kawasaki
KX 250 2023
KX 250XC 2023

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W4089.B.WO  (oro2u.com)

WOSSNER 4089DB PISTON KIT 78.00mm
B GRADE PISTON KIT 77.96mm
COMPRESSION RATIO 14.10
COMPRESSION HEIGHT 20mm
STROKE 52.20mm

Cross reference numbers
RING SET. RIK78.00
CLIPS. CW16
PIN. WP070DLC
