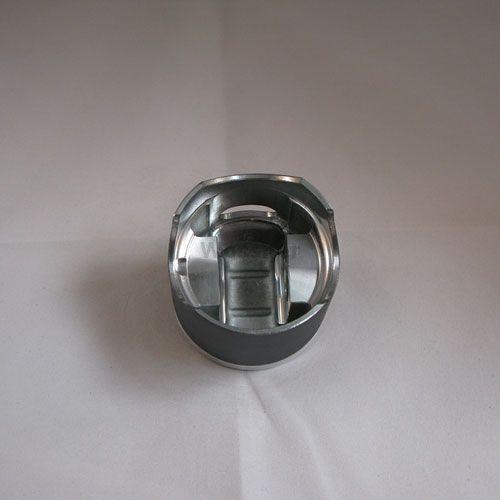

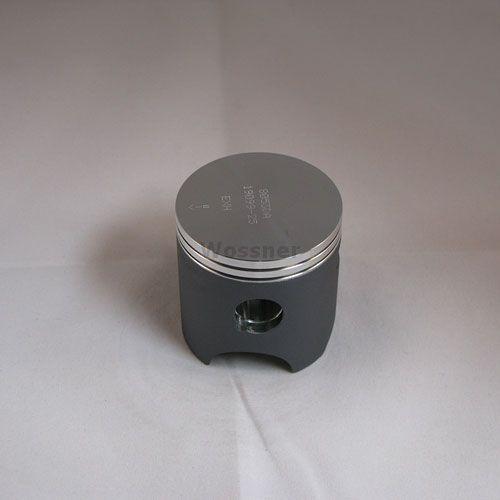

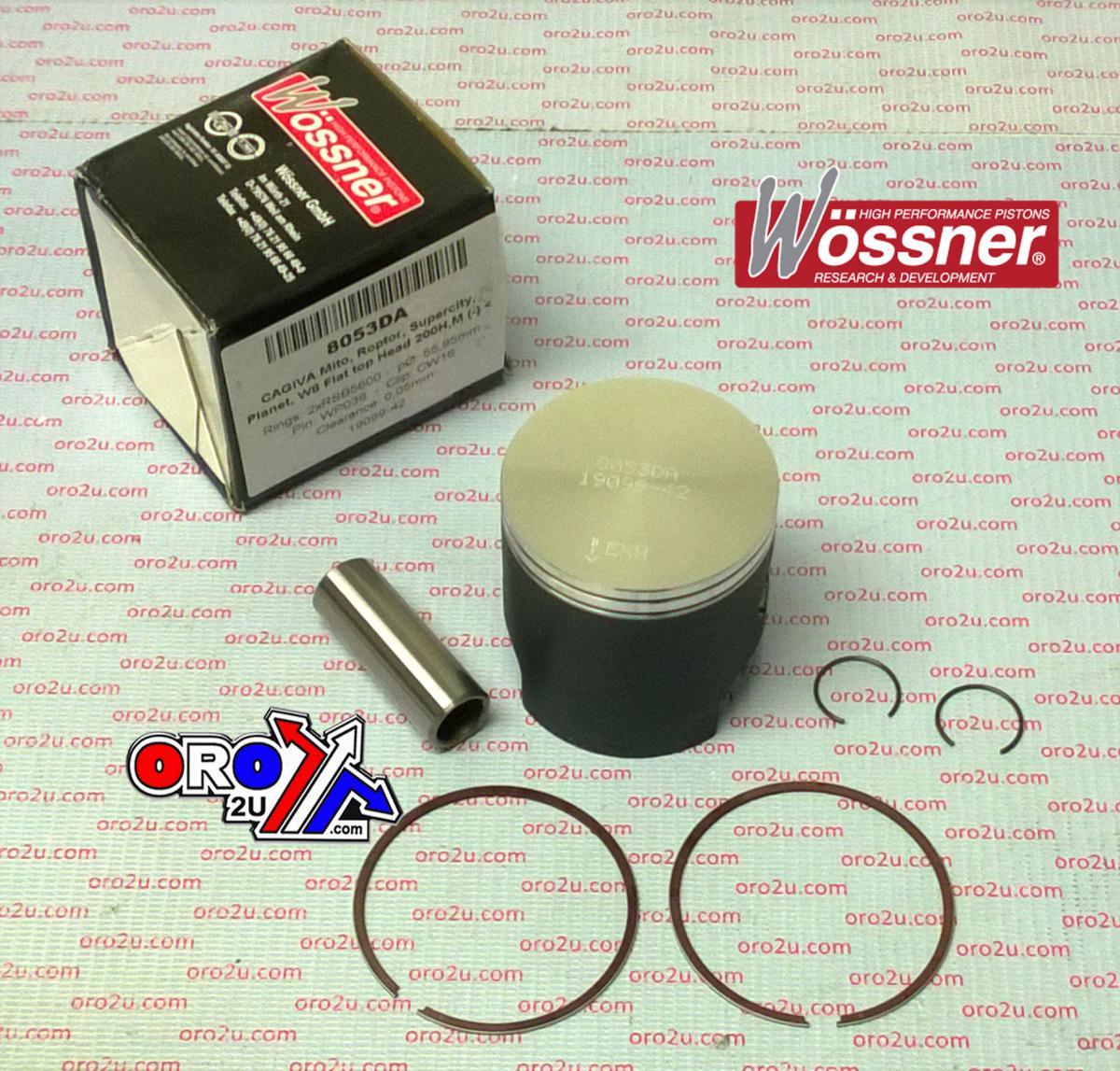

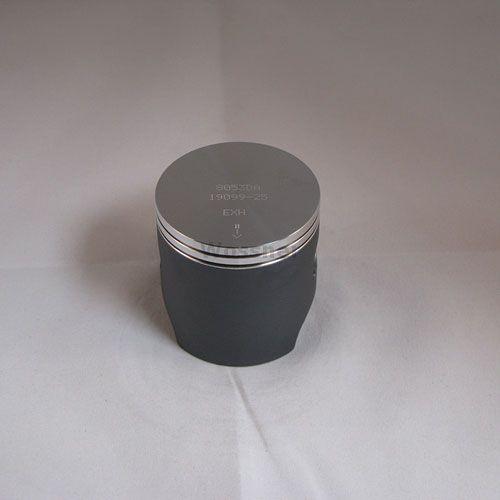

WOSSNER PISTON KIT 125 MITO 93-8 57mm, CAGIVA 8053D100 WOSSNER

Piston kit 57.00mm Bore 56.95 WOSSNER 8053D100 (+1mm)
CAGIVA
125 Mito/ Raptor / Supercity / Planet / W8 / Head 200H,M   2000-2012,                                                                                                                   Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W940+100.WO (oro2u.com)
Lock P/N CW16
Pin P/N WP036
Ring Set P/N 2 x RSB5700 Display (cm3) 124
Hub stroke (mm) 50.60
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3) Flat
Compression height (mm) 25.00
Theorectical weight (G)
