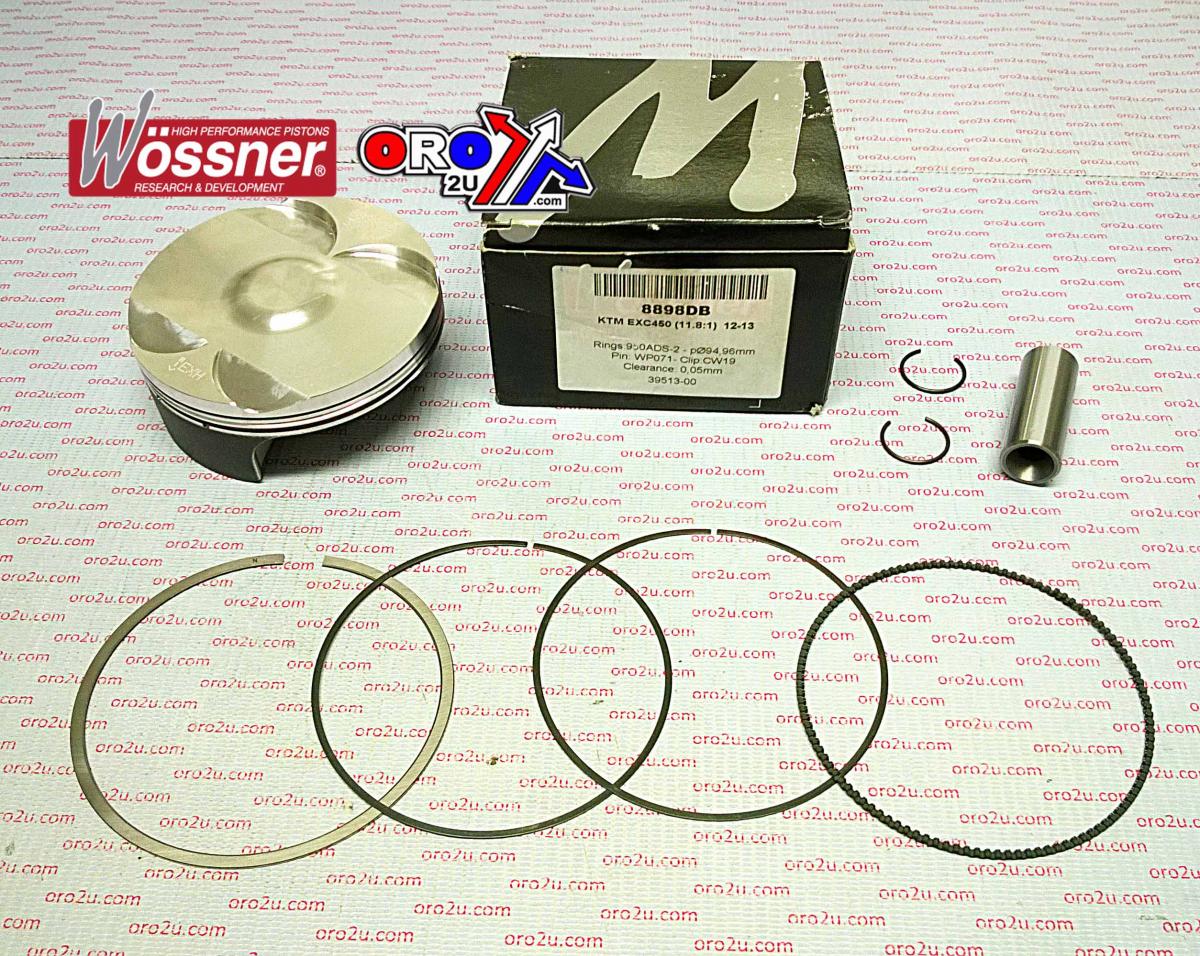

WOSSNER PISTON KIT 12-14 EXC-F450 95mm, WOSSNER 8898DA KTM 78130007100, 78030007300, 78130007000

Piston kit 95mm BORE 94.95 Wossner 8898DA (STD) HUSABERG
FE450   2014, KTM
EXC550 2012 - 2014, HUSQVARNA
FE450 2014, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W968.A.WO KTM EXC-F450 2012-2014, WOSSNER PISTON KIT
Piston Size: 94.95mm

RING P/N 950ADS-2
CLIP P/N CW19
PIN P/N WP037
(P/N# 8898DA) Display (cm3) 449
Hub stroke (mm) 63.40
Clearance (mm) 0.05
Wossner compression Ratio: OEM
OEM Compression ratio: 11.80:1
Dome volume (cm3) -1.60
Compression height (mm) 22.80
Theorectical weight (G) Cross reference numbers ONLY.
78130007100, 40091M09500, 78030007300, 78130007000

  KTM EXC450 2012 2013 4-stroke KTM EXC450 2014 2016 4-stroke KTM EXC450 2012 2013 4-stroke KTM EXC450 2014 2016 4-stroke KTM EXC450 2012 2013 4-stroke KTM EXC450 2014 2016 4-stroke KTM EXC-F450 2017 2020 4-stroke KTM EXC-F450 2017 2020 4-stroke KTM EXC-F450 2017 2020 4-stroke KTM XC-W450 2012 2013 4-stroke KTM XC-W450 2012 2013 4-stroke KTM XC-W450 2012 2013 4-stroke
