WOSSNER PISTON KIT 05-09 KX250 66.40 C, WOSSNER 8168DC KAWASAKI MX

Piston Kit 66.42mm Bore 66.36 Wossner 8168DB (+0.02)
KAWASAKI
KX250 2005 - 2008, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W844.C.WO (oro2u.com)

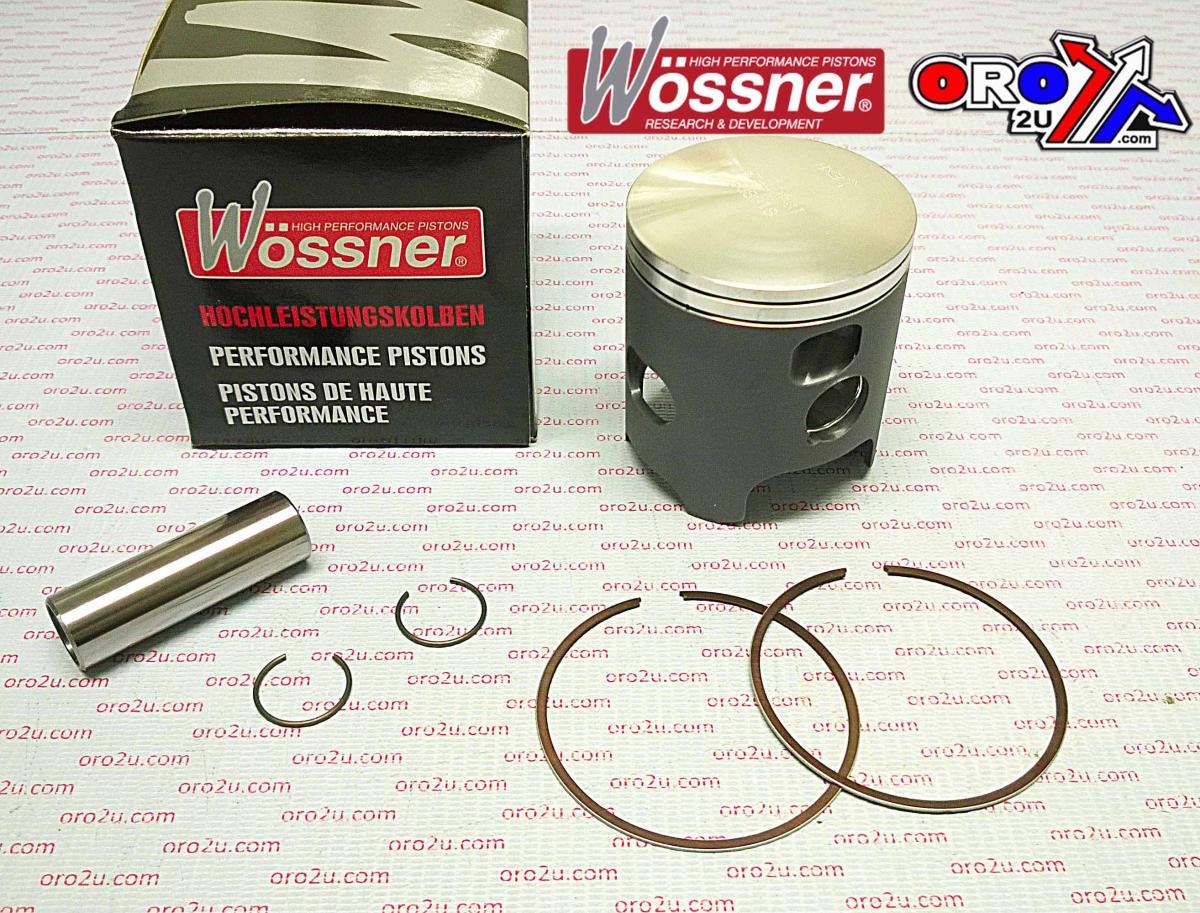

Wossner Piston Kawasaki KX250 66.42 mm Bore (PN# 8168DC)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640
Rod P/N P2022 Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 37.00
Theorectical weight (G) - 2005 Kawasaki KX 250 - 2006 Kawasaki KX 250 - 2007 Kawasaki KX 250 - 2008 Kawasaki KX 250 - 2009 Kawasaki KX 250
