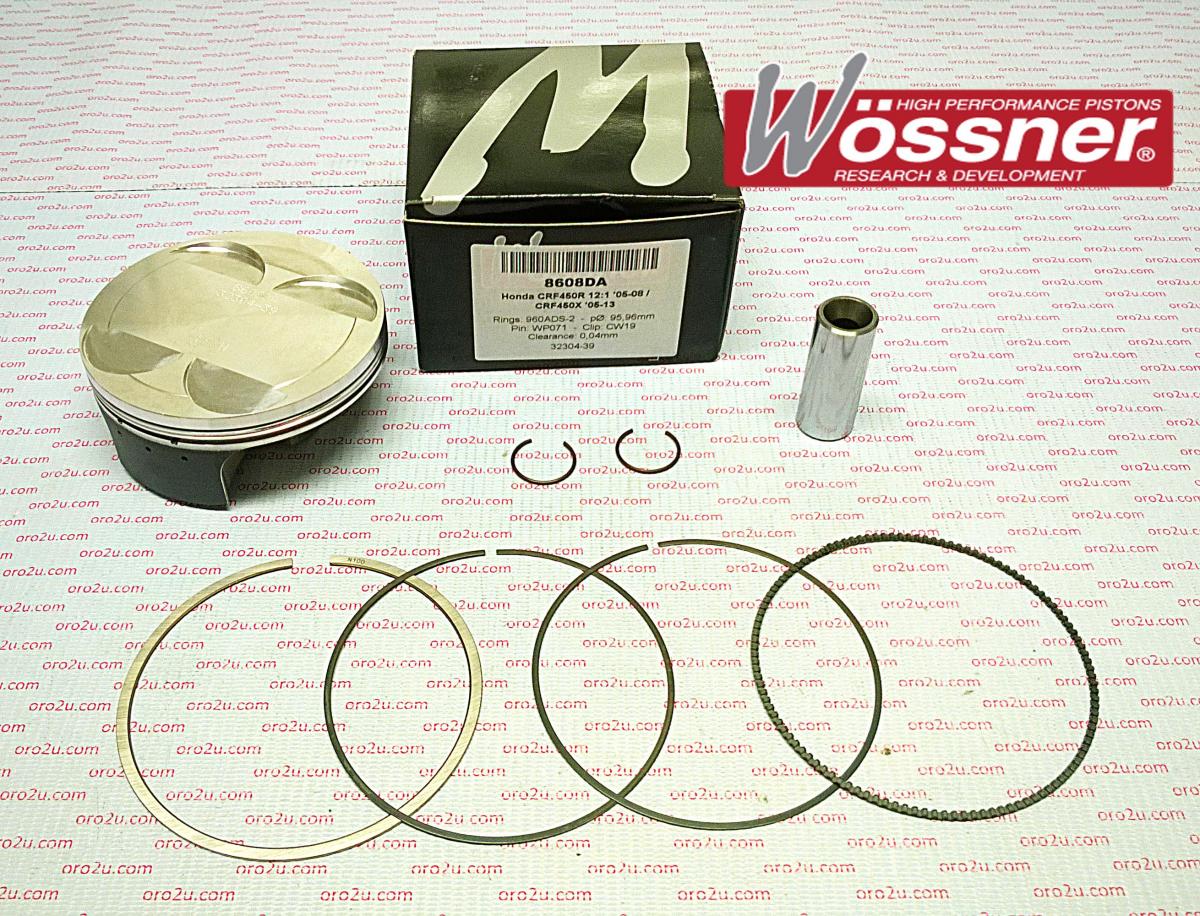

WOSSNER PISTON KIT 05-08 CRF450 96mm, FORGED WOSSNER KIT 8608DC

Piston kit 96.02mm Bore 95.98 Wossner 8608DC  (+0.02) HONDA
CRF 450 R 2005 - 2008,
CRF 450 X 2005 - 2013, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W183.C (oro2u.com)
Wossner Piston Honda CRF450R 96 mm Bore (PN# 8608DC)
Lock P/N CW19
Pin P/N WP071
Ring Set P/N 960ADS-2 Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 12.00:1
Dome volume (cm3) -1.40
Compression height (mm) 24.00
Theorectical weight (G)
