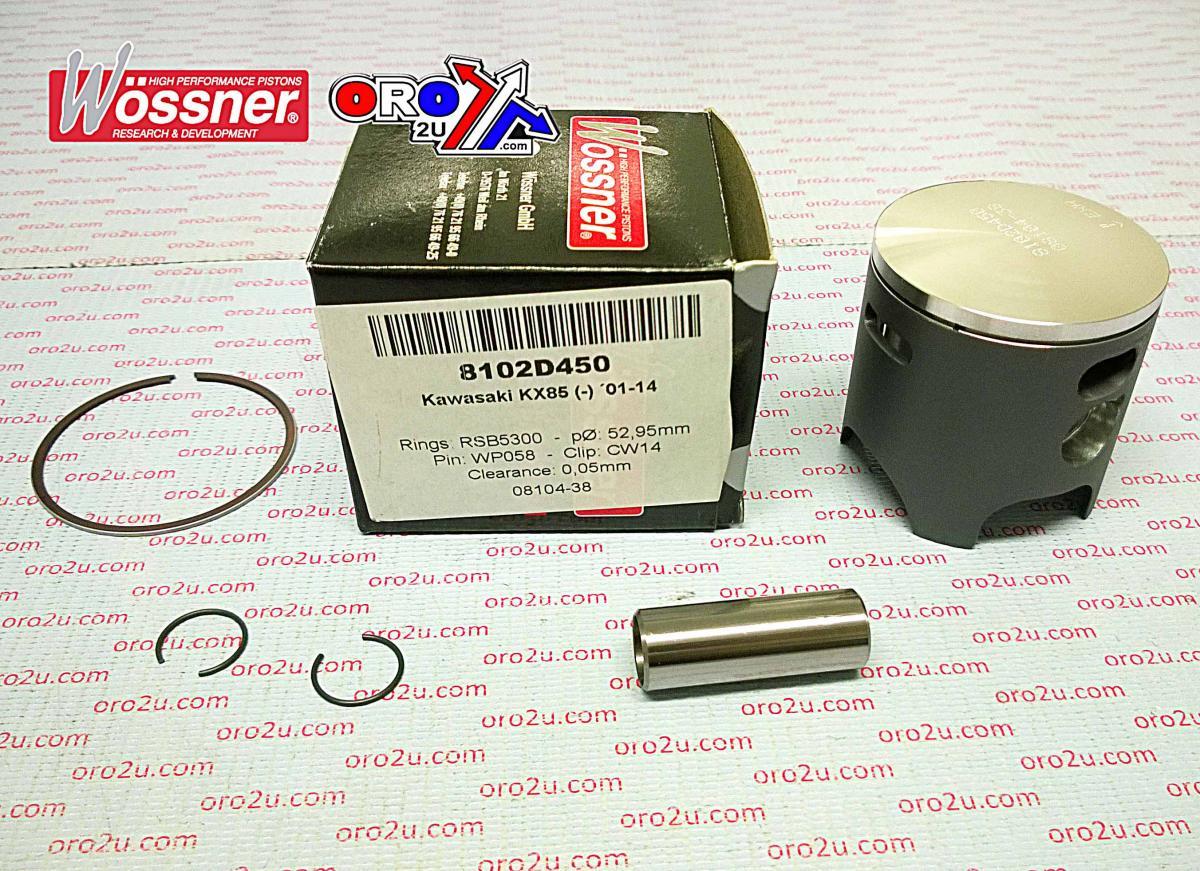

WOSSNER PISTON KIT 01-16 KX85 53.00, WOSSNER 8102D450 KAWASAKI MX

Piston Kit 53.00mm Bore 52.95 Wossner 8102D450 (+4.50) Kawasaki
KX85 2001-2016, Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W782_450.WO (oro2u.com)
Lock P/N CW14
Pin P/N WP058
Ring Set P/N RSB5300
Rod P/N P2005 Display (cm3) 85
Hub stroke (mm) 45.80
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 26.00
Theorectical weight (G)
