WOSSNER PISTON KIT 00-03 RM125 54.00 C, WOSSNER 8061DC SUZUKI MX

Piston kit 54.02mm Bore 53.97 Wossner 8061DC (+0.02)
SUZUKI
RM125 2000 - 2003,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W754.C.WO (oro2u.com)

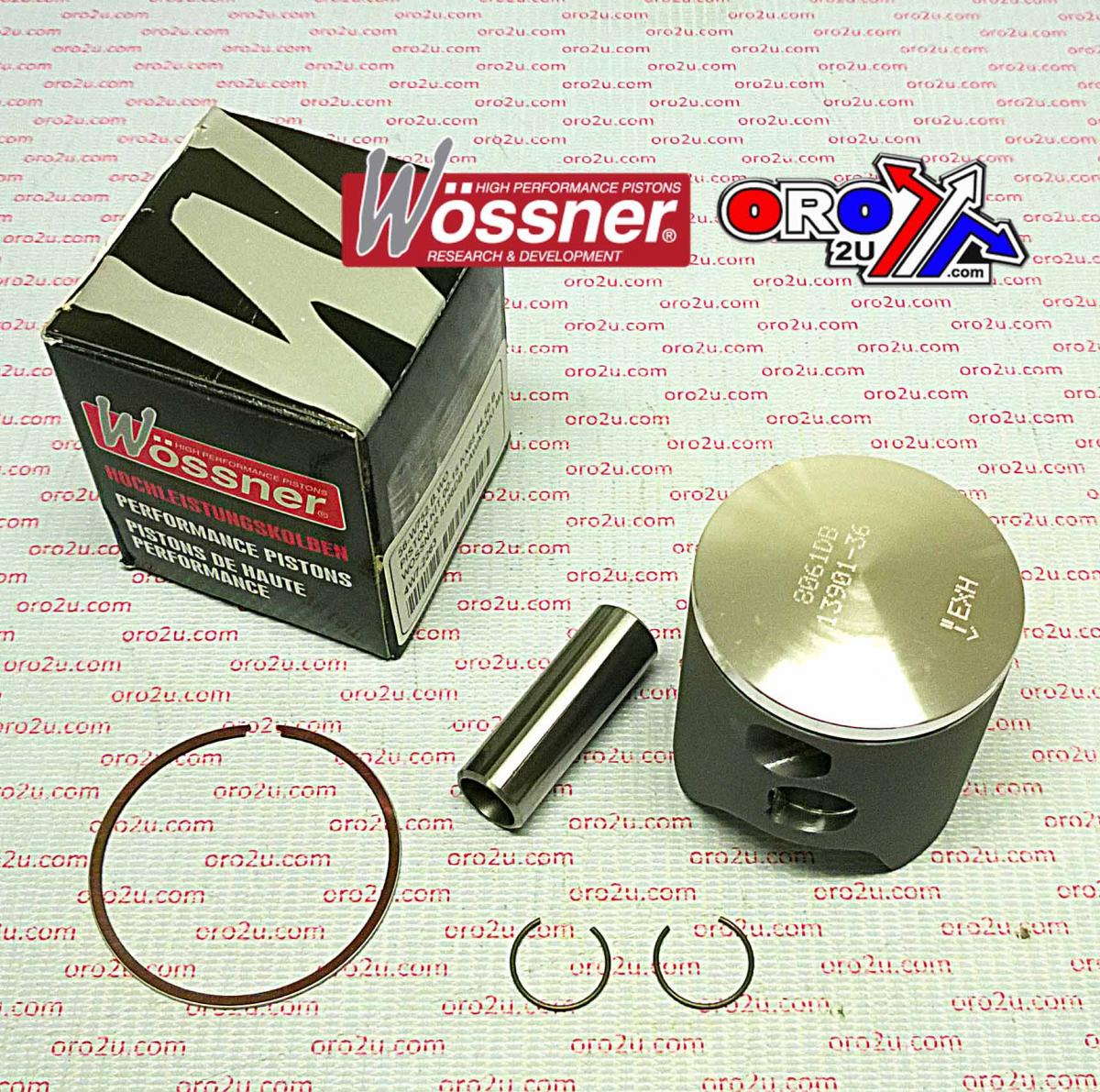

Wossner Piston Suzuki RM125 54.02 mm Bore (PN# 8061DC)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5400
Rod P/N P2013 Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 29.50
Theorectical weight (G) Select your car to see if this product fits:
- 2000 Suzuki RM 125 - 2001 Suzuki RM 125 - 2002 Suzuki RM 125 - 2003 Suzuki RM 125
