WOSSNER PISTON KIT 00-03 CR125 54.50, WOSSNER 8067D050 HONDA MX

Piston kit 54.50mm Bore 54.45 Wossner 8067D050 (+0.50)
HONDA
CR125 2000 - 2003,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W676.P2.WO (oro2u.com)

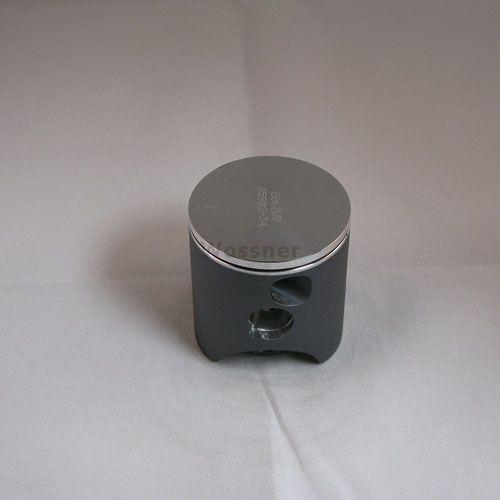

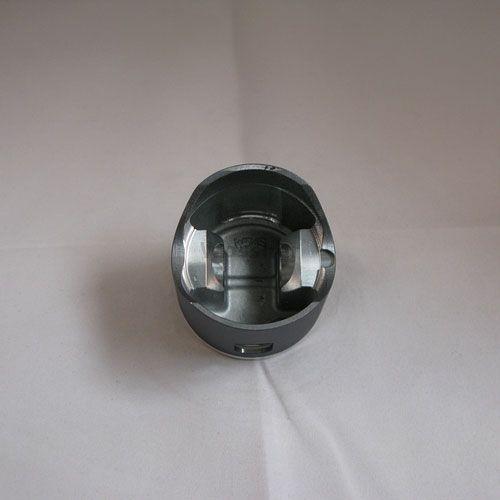

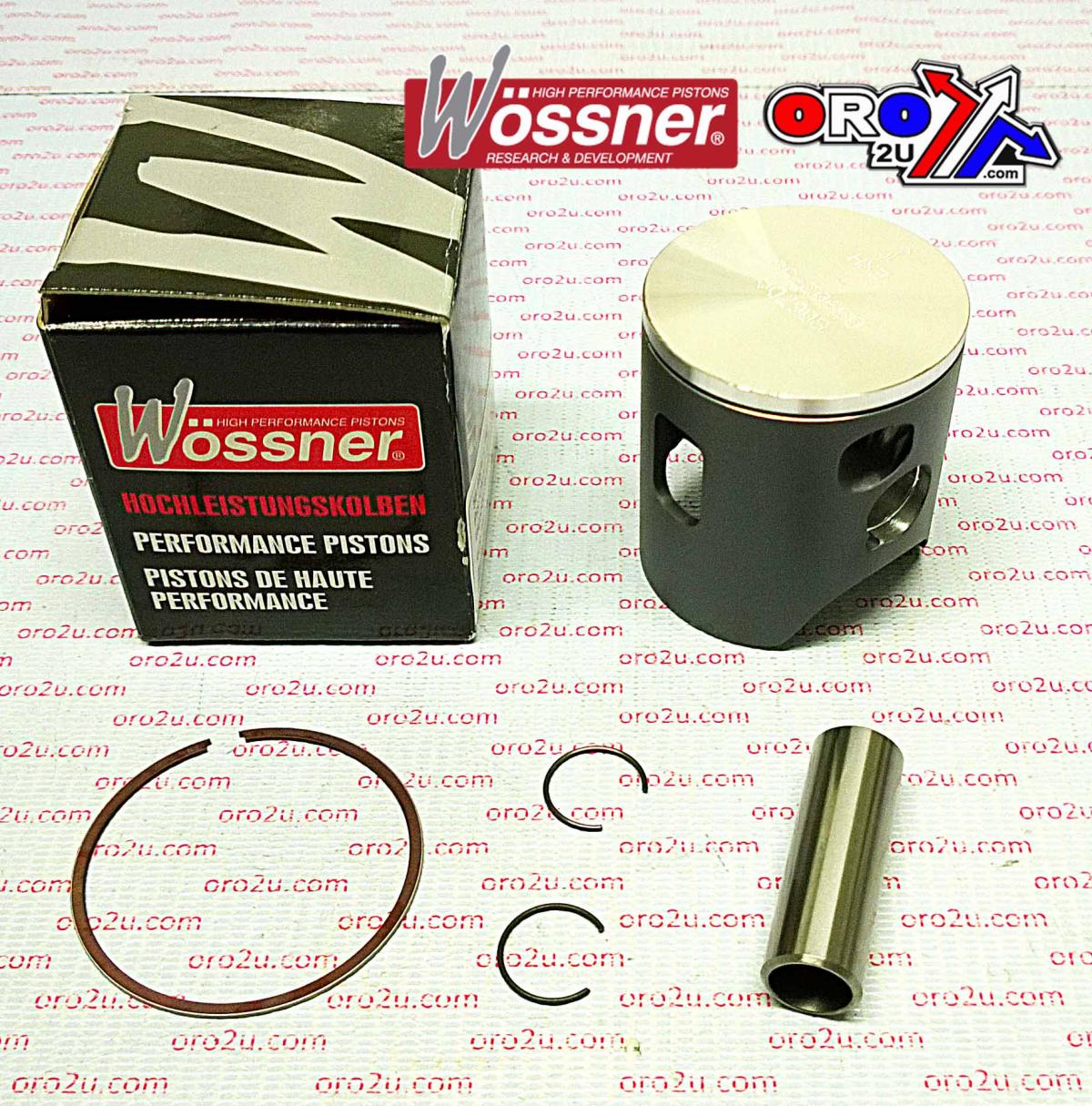

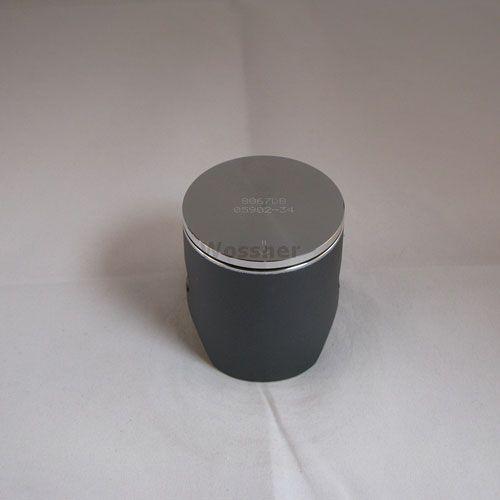

Wossner Piston Honda CR125 54.50 mm Bore (PN# 8067D050)
Lock P/N CW15
Pin P/N WP032
Ring Set P/N RSB5450
Rod P/N P2009 Display (cm3) 125
Hub stroke (mm) 54.50
Clearance (mm) 0.05
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 28.00
Theorectical weight (G) 2000 Honda CR 125 2001 Honda CR 125 2002 Honda CR 125 2003 Honda CR 125
