WOSSNER PISTON 96-97, 99 RM250 66.40, WOSSNER 8058DC SUZUKI MX

Piston kit 68.02mm Bore 67.96 Wossner 8023DC (+0.02)
SUZUKI
RM250 1996 - 1997,
Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. Part No. 56-W681.C.WO (oro2u.com)

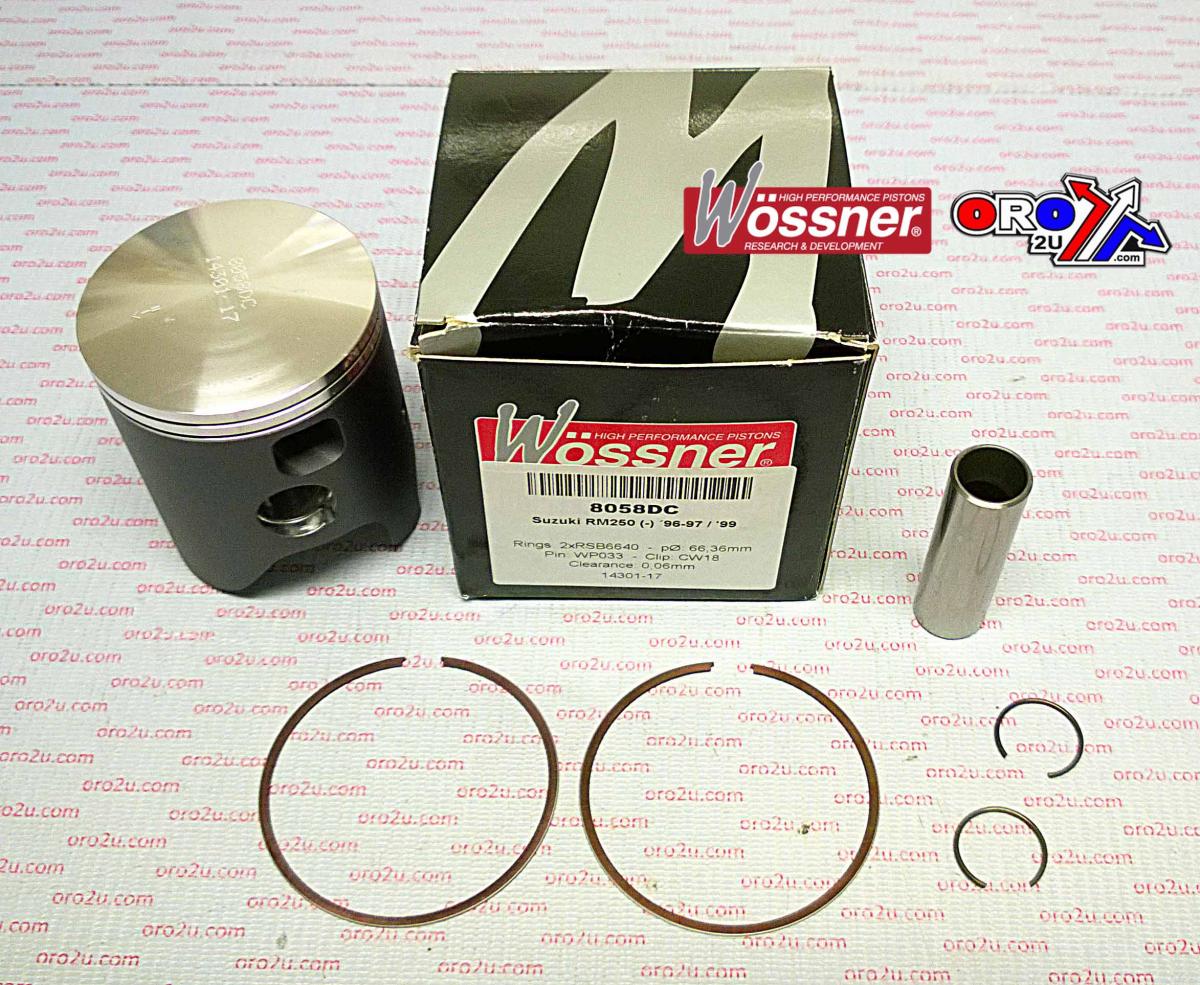

Wossner Piston Suzuki RM250 66.42 mm Bore (PN# 8058DC)
Lock P/N CW18
Pin P/N WP033
Ring Set P/N RSB6640 X 2
Rod P/N P2026 Display (cm3) 249
Hub stroke (mm) 72.00
Clearance (mm) 0.06
Wossner compression Ratio: 2 stroke
OEM Compression ratio: 2 stroke
Dome volume (cm3)
Compression height (mm) 38.00
Theorectical weight (G) Select your car to see if this product fits:
- 1996 Suzuki RM 250 - 1997 Suzuki RM 250 - 1999 Suzuki RM 250
