NAMURA CONNECTING ROD 99-21 YZ250, NAMURA RX-40015 YAMAHA MX

FANTIC
XX 250 2022-2023 ÿ YAMAHA
YZ250 1999-2021,

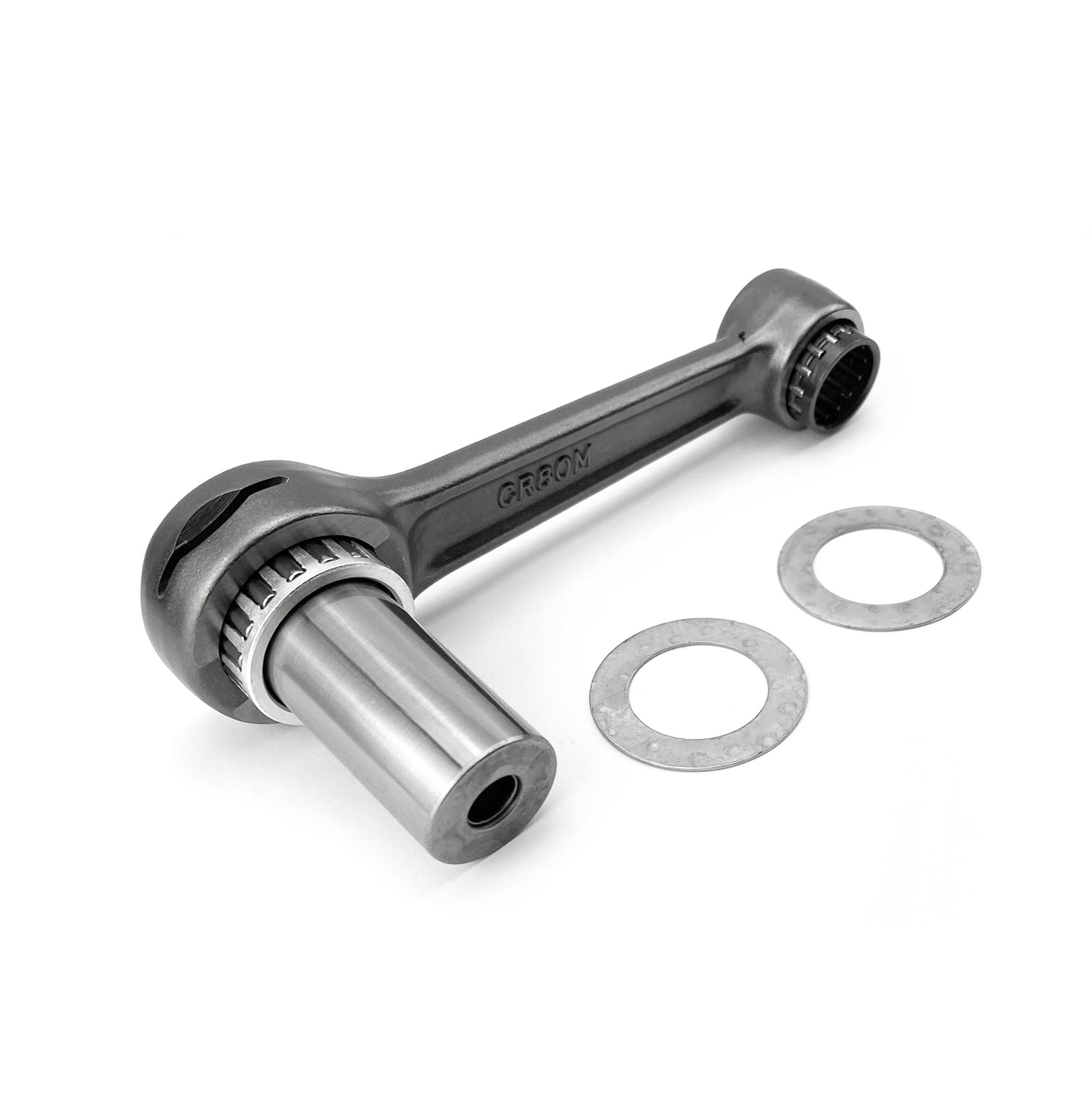

YZ250X 2016-2021, Connecting rod rebiuld kitÿ High-quality replacement kits are manufactured from hot-rolled alloy steel and case-hardened. Advanced design uses strategically located side scalloping and vent slots to minimize high rpm bearing race distortion. Rods are also shot-peened and double-honed for superior strength under heavy loads. Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing. Thrust washers and crank pin bearings are silver-coated for added lubricity. Kits sold complete with rod, crank pin, crank pin bearing, top end bearing and thrust washers. SIZE
MM Centre 2 Centre 125 Small End Bearing 18x22x22
Small End Bore � 22
Small End Width 20
Big End Bearing 24x31x16.8 Big End Bore � 31
Big End Width 17
Big End Pin � 24
Big End Pin Length 58.70
Washer Thickness 24x40x1
Part No. 56-163.DR Cross Reference Numbers Only:
P2028, 5CU-11651-00-00, YAMAHA: 5MW-11651-00-00, 8156, 5CU-11651-00-00, 5MW-11651-00-00, ATHENA P40321019, PSYCHIC MX-09083, PROX 03.2309, WOSSNER P2028, HOTRODS 8156, MX-09083ÿ ÿ Assemblies where 5CU-11651-00-00 is used 1999 COMPETITION (YZ250L1) - Optional Parts 1999 COMPETITION (YZ250L1) - Crankshaft Piston 2000 YZ250 (YZ250M1) - Crankshaft Piston 2000 YZ250 (YZ250M1) - Optional Parts 2001 YZ250 (YZ250N1) - Optional Parts 1 2001 YZ250 (YZ250N1) - Crankshaft Piston 2002 YZ250 (YZ250P) - Optional Parts 1 2002 YZ250 (YZ250P) - Crankshaft Piston 2003 YZ250 (YZ250R) - Crankshaft Piston 2003 YZ250 (YZ250R) - Optional Parts 2004 YZ250 (YZ250S1) - Crankshaft Piston 2004 YZ250 (YZ250S1) - Optional Parts 2005 YZ250 (YZ250T1) - Crankshaft Piston 2005 YZ250 (YZ250T1) - Optional Parts 2006 YZ250 (YZ250V) - Crankshaft Piston 2006 YZ250 (YZ250V) - Optional Parts 1 2006 YZ250 (YZ250V) - Optional Parts 2006 YZ250 (YZ250V) - Crankshaft Piston 2006 YZ250 (YZ250V) - Optional Parts 1 2007 YZ250 (YZ250W1) - Crankshaft Piston 2007 YZ250 (YZ250W1) - Optional Parts 2008 YZ250 (YZ250X) - Crankshaft Piston 2008 YZ250 (YZ250X) - Optional Parts 2009 YZ250 (YZ250Y) - Crankshaft Piston 2009 YZ250 (YZ250Y) - Optional Parts 2010 YZ250 (YZ250Z) - Crankshaft Piston 2010 YZ250 (YZ250Z) - Optional Parts 2011 YZ250 (YZ250A1) - Crankshaft Piston 2011 YZ250 (YZ250A1) - Optional Parts 2012 YZ250 (YZ250B2) - Optional Parts 1 2012 YZ250 (YZ250B2) - Crankshaft Piston 2013 YZ250 (YZ250D2) - Optional Parts 1 2013 YZ250 (YZ250D2) - Crankshaft Piston 2014 YZ250 (YZ250E2) - Optional Parts 1 2014 YZ250 (YZ250E2) - Crankshaft Piston 2015 YZ250 (YZ250F2) - Optional Parts 1 2015 YZ250 (YZ250F2) - Crankshaft Piston 2016 YZ250G (YZ250G2) - Optional Parts 1 2016 YZ250G (YZ250G2) - Crankshaft Piston 2016 YZ250X (YZ250XG) - Optional Parts 1 2016 YZ250X (YZ250XG) - Crankshaft Piston 2017 YZ250 (YZ250H2) - Optional Parts 1 2017 YZ250 (YZ250H2) - Crankshaft Piston 2017 YZ250X (YZ250XH) - Optional Parts 1 2017 YZ250X (YZ250XH) - Crankshaft Piston 2018 YZ250 (YZ250J2) - Optional Parts 1 2018 YZ250 (YZ250J2) - Crankshaft Piston 2018 YZ250X (YZ250XJ) - Optional Parts 1 2018 YZ250X (YZ250XJ) - Crankshaft Piston 2019 YZ250 (YZ250K2) - Optional Parts 1 2019 YZ250 (YZ250K2) - Crankshaft Piston 2019 YZ250X (YZ250XK) - Optional Parts 1 2019 YZ250X (YZ250XK) - Crankshaft Piston 2020 YZ250 (YZ250L2) - Optional Parts 1 2020 YZ250 (YZ250L2) - Crankshaft Piston 2020 YZ250X (YZ250XL) - Optional Parts 1 2020 YZ250X (YZ250XL) - Crankshaft Piston 2021 YZ250 (YZ250M2) - Optional Parts 1 2021 YZ250 (YZ250M2) - Crankshaft Piston 2021 YZ250X (YZ250XM) - Optional Parts 1 2021 YZ250X (YZ250XM) - Crankshaft Piston
