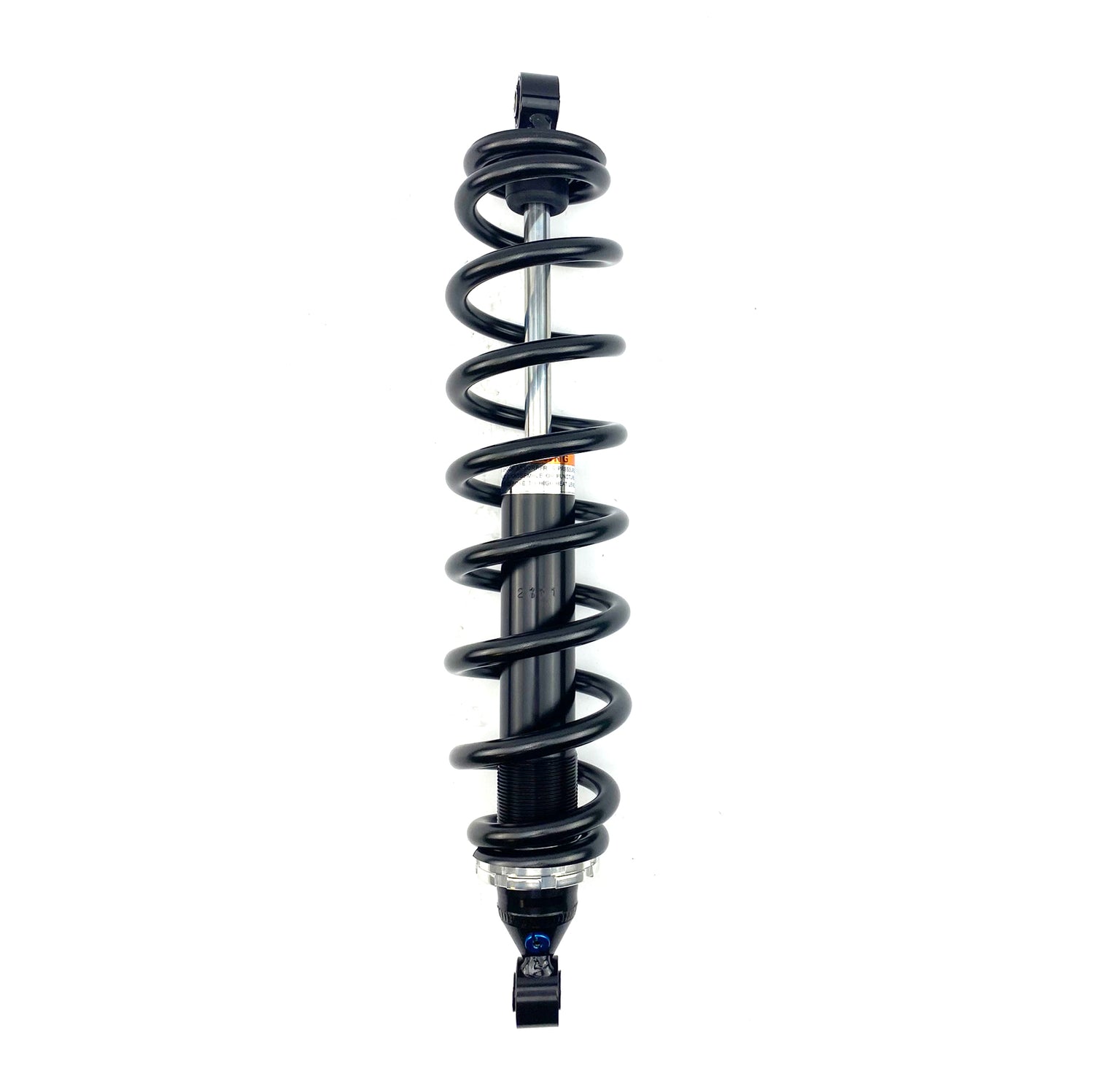

DIRT RACING SHOCK FRONT ARCTIC CAT 405mm, AU-04320, 0403-209, 0403-188

BRONCO HEAVY DUTY GAS SHOCKS Fits ATV Models:Bronco gas shocks offer long term consistent performance over stock oil only damped shocks
10% stiffer springs provide a better ride and higher load capacity
Works great on the front when installing a snow plow
Smooth black color blends perfectly with any OEM ATV
Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box
Sold individually - Includes one shock, with spring, and spring retainers
Replaces part number 0403-188 & 0403-209 factory hydraulic shocks  FITMENT: 400 TRV 2009-14 450 2010-12 450 EFI 2010-11 450 H1/TRV/GT 2010-13 500/XT 2013-17 500 H1 "2009-11 2013-16" 500 TRV/EFT 2009-16 TRV 500 2013-15 ALTERRA TRV 500 2017 550S/TRV 2010-11 550 TRV 2009-10 550 TRV CRUISER 2012 ALTERRA TRV 550 2017 550 XT/LTD/GT 2009-15 650 2010-12 650 H1 2011 650 TRV/TBX 2009 700 2013-14 700 H1 2008-11 700 TBX/XT/LTD 2008-17 700S/TRV 2010-11 700 TRV CRUISER 2009-10 700 ALTERRA TRV XT 2017 VLX/TBX/TRV 700 2017-19 TRV 700/GT/LTD 2011-12 1000 THUNDERCAT 2008-10 1000 TRV CRUISER 2009 1000S/ TRV/GT/CRUISER 2010-12 1000 XT/TRV 2010-16 SPECIFICATIONS   POSITION TOP HOLE I.D MM: 10 TOP EYELET WIDTH MM: 20.5
BOTTOM HOLE I.D MM: 10 BOTTOM EYELET WIDTH MM: 20.5
TUBE O.D MM: 36 STROKE MM: 116
SPRING OD MM: 87
SPRING WIRE DIAMETER MM: 10
SPRING RATE LBS/INCH: 246
SPRING RATE KG/MM: 4.40
CENTER TO CENTER MM: 405
CENTER TO CENTER IN: 16
