DIRT RACING CONNECTING ROD KIT KTM SX PRO JUNIOR SENIOR 50 65CC 02-08 45030015500

CONNECTING CONROD ROD REBUILD KIT:

KTM SX65 2003-2008

KTM models 50 SX-mini 1997-2002 fitted with engine Franco Morini

Heavy-duty OE replacement connecting rods.
Certified Chrome alloy steel provides superior strength.
Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
Psychic Rods uses the latest in caged needle roller bearing designs for high RPM longevity.
Thrust washers are manufactured from bronze phosphor and are silver coated.

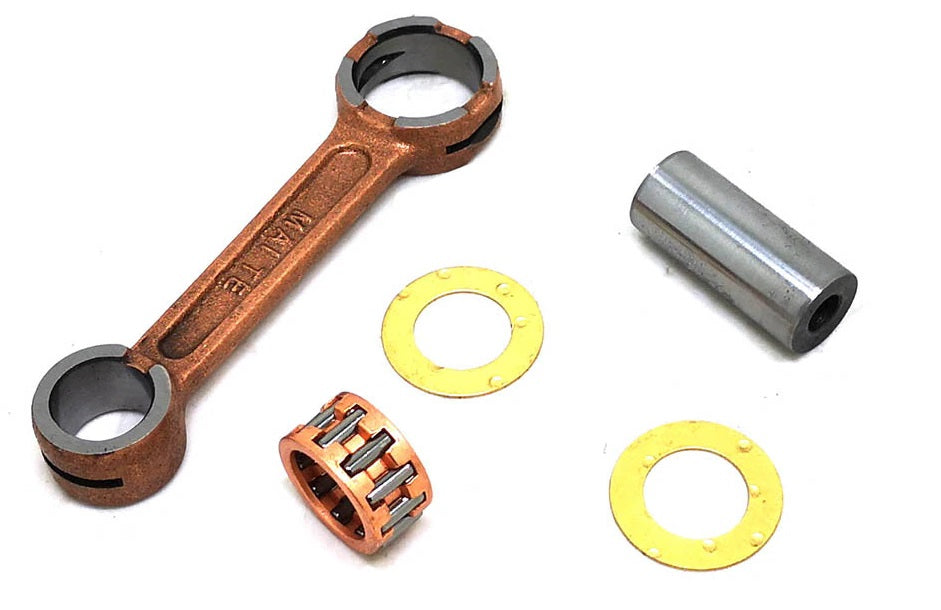

Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing, and thrust washers if needed.
Fully compatible with aftermarket and OE crankshafts.
Material: SNCM220

SIZE (mm)

Centre to Centre: 88
Small End Bearing: 12x15x16.3
Small End Bore Ø: 15
Small End Width: 13
Big End Bearing: 18x24x14.8
Big End Bore Ø: 24
Big End Width: 14.90
Big End Pin Ø: 18
Big End Pin Length: 42
Washer Thickness: 1.00

Part No. 56-960.DR ( )

Cross Reference Numbers Only:

KTM: 46030015100
HOTRODS: 8626
PROX: 03-6023
WOSSNER: P2002 45030015500
PSYCHIC MX-09039
