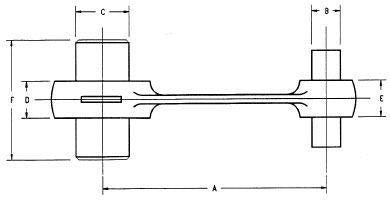

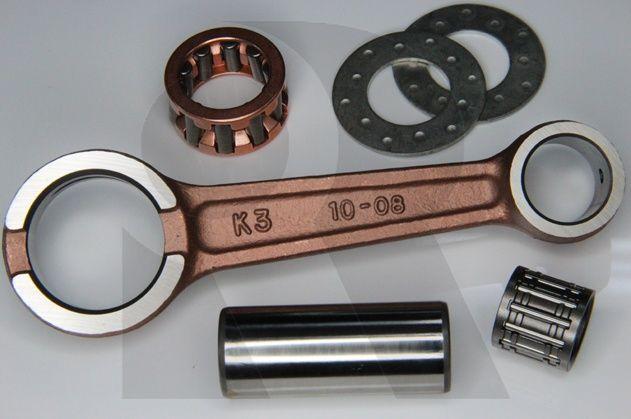

KAWASAKI KX80 KDX80 79-80, G7T / KH100 /G7S PART NO. 13044-5014 CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 99, B = 14, C = 20, D = 14, E = 16, F = 46.5 PIN: DIA. 19 x L 46.5
SMALL END BEARING:14*18*16.5
BBIG END BEARING:19*28*13.8
WASHER: 36 x 19.2 x 1
Kawasaki 13044-5014 CONNECTING ROD SET is also used on these models and components:
1979 KX80-A1 KX80
1979 KX80-A1 KX80
1980 KDX80-A1 KDX80
1980 KDX80-A1 KDX80 Part No. 56-2950 ()
